GATE HARDWARE
*ALL ITEMS ARE SUBJECT TO PRIOR SALE & STOCK AVAILABILITY
>>
>>
>>
>>
>>
Slide Bolt
5-3/4" x 4" overall size
1/2" Bolt
>>
>>
Heavy-Duty
.png){kind=small}
ITEM#
DESCRIPTION
HA1
Heavy Slide Bolt
.png)
"Around-the-corner" installations
Size, Length of Slotted Part: 4-1/2"
Length of Hinge: 2-1/2"
Length of Pad: 2"
Width of Joint: 1-1/2"
Safety Chest Hasp
All steel
construction
ITEM#
HA25
DESCRIPTION
Safety Chest Hasp
Extra-Heavy Safety Hasp
All steel construction
Dimensions: 7-1/4"
Straight bar
>>
>>
ITEM#
HA26
DESCRIPTION
Extra-Heavy Safety Hasp
LATCHES & SLIDE BOLTS
>>
>>
Fancy Gate Latch
Mill Finish
Rugged
Weldable
steel with
mounting
bracket
.png){kind=small}
ITEM#
DESCRIPTION
HA57
Fancy Gate Latch
Decorative Gate Latch
>>
>>
Width: 5-3/8"
Weight: .23 lb
>>
>>
Height: 3-3/8" H
Screws not included
ITEM#
DESCRIPTION
SF170B5
Decorative Gate Latch
Gravity Gate Latch
Self-latching
>>
ITEM#
DESCRIPTION
HA4
HA4WH
No Holes - Weldable
With Screw Mounting Holes
Post Latch
Minimum 5/8" gap between gate & post
>>
>>
>>
All steel construction
Parts are reversible for right-hand or left-hand gates
May be padlocked
ITEM#
DESCRIPTION
HA15
Post Latch
Barrel Bolt Latch
Heavy-Duty
Thickness: .071
Bolt diameter: .394
>>
>>
ITEM#
DESCRIPTION
HA704
Heavy Duty Barrel Bolt Latch
Weldable Light Duty Slide Bolt
7" x 2-7/8"
overall size
3/8" Bolt
>>
>>
ITEM#
DESCRIPTION
HA6
Light Duty Slide Bolt
Slide Bolt
Extra Heavy-Duty
3/4" bolt diameter
Black Finish
9" wide
5" high
>>
>>
>>
>>
ITEM#
DESCRIPTION
Extra Heavy Duty Slide Bolt
GATE HINGES
Adjustable Gate Hanger Bolt
>>
>>
Galvanized finish
1/2" bolt can be used with female bat wing hinge
Sold individually
.png){kind=small}
ITEM#
PIN DIA.
PIN HT.
LENGTH
HA2
HA258
HA234
HA25812
1/2"
5/8"
3/4"
5/8"
1-1/2"
1-9/16"
1-3/4"
2"
4-1/2"
4-1/2"
6"
12"
.png)

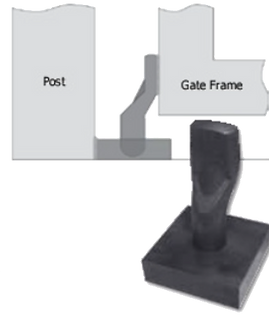

Weldable
Pivot
Hinge Set
>>
>>
>>
>>
>>
Heavy duty, economy hinge
Overall Height: 4"
Overall Width: 2-1/2" sq.
Pin: 7/8" dia. x 3-7/8" length
Base: 2-3/4" x 2-3/4" x 3/4" thick
Sold individually
ITEM#
DESC.
HIC4012
HIC4042
Pin
Base
>>
Bat Wing Clips
Weldable
non-adjustable
hinges
Sold individually
ITEM#
#PIN/HOLE
DESCRIPTION
HA5M
1/2"
Male Bat Wing Clip
HA5
1/2"
Female Bat Wing Clip
.png)
Economy Bolt-On
Bat Wing Gate
Hinges
Black powder
-coated finish
1/2" diameter pin
for strength
Female can be used with Gate Hanger Bolt (HA2) or the bat wing clips
>>
>>
Sold individually
ITEM#
DESCRIPTION
HA5WTM
Male Bat Wing Hinge
HA5WTF
Female Bat Wing Hinge
Heavy Duty Steel Hinges
For uphill swing up to 15 degrees
Also for extra heavy gates up to 1 ton
Features included: 3" x 10" x 1/2" thick weldable plates, bronze bearings and 3/4" diameter steel hinge bolt.
>>
>>
>>
Sold In Pairs
ITEM#
OVERALL SIZE
DESCRIPTION
HI775
11-1/2" x 8"
Uphill Gates Hinges
Decorative
Barrel Hinges
Weldable
Brass bushing
Small: 4-3/8" H x 3/4" W
Pin: 7/16" dia. x 1"
Large: 6-1/4" H x 1-3/8" W
Pin: 5/8" dia. x 1-1/2"
>>
>>
>>
>>
Sold individually
ITEM#
SIZE
HIC5901
Small
HIC5903
Large
Steel Barrel Hinges
Machined from
round bar
Designed for gates
and doors
Weldable
>>
>>
>>
Sold In Pairs
.png){kind=small}
ITEM#
LENGTH
BAR
CAPACITY
BHXS
2"
5/8"
75 lbs.
BHS
3"
3/4"
100 lbs.
Tear Drop
Weldable Hinge
Forged pin and
brass bushing
Sold individually
.png)
1/2", 5/8", 3/4" barrel dia.
ITEM#
LENGTH
BARREL DIA.
HIC4904
1-1/2"
1/2"
HIC4908
HIC4914
3"
5-1/2"
5/8"
3/4"
WELDABLE GATE HINGES
.png)
>>
>>
>>
>>
Medium 5"
Gate Hinges
Up to 300 lb. gate capacity per set
Machined from one piece of cold finish steel
Ball bearing for smooth operation
ITEM#
DESCRIPTION
BHM
Medium 5" Hinge
Priced and sold in sets of two hinges.
Large 7"
Gate Hinges
>>
>>
>>
Up to 100 lb. gate capacity per set
Machined from one piece of cold finish steel
Ball bearing for smooth operation
Priced and sold in sets of two hinges.
.png)
DESCRIPTION
ITEM#
BHL
Large 7" Hinge
>>
>>
>>
>>
Extra Large
Gate Hinges
Up to 2500 lb. gate capacity per set
Machined from one piece of cold finish steel
Ball bearing for smooth operation
Priced and sold in sets of two hinges.
ITEM#
BHXL
7"x1/2" Hinge
DESCRIPTION
For More Than 20 Years
Blacksmith Brand
Weldable Gate Hinges Have Set the Standard!
Built to last with high-quality machined steel construction
Easy to lubricate with built-in grease fittings
>>
>>
Excellent Quality at Affordable Prices
Medium Adjustable Hinge
>>
>>
>>
>>
>>
Up to 500 lb. gate capacity per set
Machined from cold finished steel bar
Ball bearing for smooth operation
5/8" J-Rod provides 4" of gate adjustability
Priced and sold in sets of two hinges.
ITEM#
DESCRIPTION
BHMADJ
Medium Adjustable Hinge
Heavy Duty Roller Bearing Hinge
>>
>>
>>
>>
>>
>>
Sealed roller bearings are maintenance free, no lubrication required
2000 lb. capacity per pair
4-1/4" H x 2" W
2-1/4" barrel diameter
4-1/4" gate clearance
10-1/2 lbs. per pair
Sold In Pairs
ITEM#
DESCRIPTION
BHG9
Heavy Duty
Large Adjustable
Hinge
Sold In Pairs
ITEM#
BHLADJ
>>
>>
>>
>>
>>
Up to 900 lb. gate capacity per set
Machined cold finished steel bar
Ball bearing for smooth operation
7/8" diameter alloy threaded rod
Provides up to 7" of gate adjustability
SPECIALTY HINGES
Fully Adjustable
Specialty Hinge
Sold Individually
>>
>>
3/4" threaded bolt
6-3/4" total length
ITEM#
HAC150M18
Extra Large 180 degree
Weldable Hinge- Fully Adjustable
>>
>>
2 sizes available
Allows door to be opened 180 degrees
Sold Individually
Adjustable Gate Hinge
with Plate and Lock Nut
4"x4" Bolt on plate
7/16" holes
Adjustable 3/4" hanger bolt
>>
>>
>>
Sold Individually
ITEM#
HAC163
ITEM#
THREADED BOLT
HAC17812
HAC17824
5/8"
3/4"
Large Hinge with
Removable Pin
Sold Individually
ITEM#
HAC440
Adjustable Hinge
Sold Individually
>>
>>
ITEM#
HAC135M18
1" diameter weldable bushing
3/4" diameter bolt
Adjustable Hinge with Weldable Wing
>>
>>
>>
2-1/2" weldable bracket 1/2" bolt.
Adjusts from 2" to 2-1/2" from end of bracket
3-7/8" high
Sold Individually
ITEM#
HAC90G
Combo Aluminum &
Steel Hinge
>>
>>
>>
>>
Two sealed roller bearings (no greasing)
Both round & flat post compatibility
Slotted yoke for adjustability
Lifetime component replacement guarantee (5 years for bearings)
ITEM#
DESCRIPTION
HI3300
Combo Hinge
4" Double Acting
Spring Hinges
>>
>>
>>
>>
>>
>>
>>
For doors weighing up to 50 lbs.
For doors from 1" to 1-1/2"
Primer gray finish is ready to paint
Great for high-traffic doors that need to open in both directions and close automatically.
Includes wood screws and tool to adjust speed and tension.
Weighs 2.75 lbs. per pair.
Sold by the Pair
ITEM#
HIGH604DA
Base Plate Hinge with Thrust Bearings
1-1/2" H 2-5/8" Dia
>>
Sold Individually
ITEM#
HAC87G
Bolt-On Hinge
Two sealed roller bearings (no greasing)
Slotted yoke for adjustability
Flat Bolt-on brackets
2.90" to 3.40
Adjustable Width
>>
>>
>>
ITEM#
DESCRIPTION
HI3700
Bolt-On Hinge
.png)
Bolt-On
Baby
Hinge
3.03" to 3.53
300 lb Rating
Adjustable Width
Two sealed roller bearings (no greasing)
Slotted yoke for adjustability
Flat Bolt-on brackets
>>
>>
>>
ITEM#
DESCRIPTION
HI3750
Bolt-On Baby Hinge
All Aluminum Hinge
>>
>>
>>
>>
Two sealed roller bearings (no greasing)
Slotted yoke for adjustability
Ratings: 1000 lbs
Lifetime component replacement guarantee (5 years for bearings)
DESCRIPTION
ITEM#
HI3400
Aluminum Hinge
Sold by the Pair
GATE HINGES
Standard Weight
Hinge with Holes
>>
>>
>>
Tight-Pin
Screws not included
Sold by the Pair
Narrow Width
Weldable Hinge
Plain Steel
Blank (no holes)
Tight pin
.098 gauge
>>
>>
>>
>>
>>
Sold by the Pair
.png){kind=small}
ITEM#
SIZE
HI100
2-1/4" x 3-1/2"
ITEM#
HI312WH
SIZE
3-1/2" X 3-1/2"
Spring Hinge For Automatic Closing of Doors
(Single Acting)
>>
>>
ITEM#
SIZE
HI250
3-1/2" X 3-1/2"
>>
>>
>>
>>
.png)
"H" Hinge
Black hammered finish
Fasteners not included
Neoprene washer for smooth operation.
ITEM#
SIZE
HIH
7" H x 2-1/2" W
Extra Heavy
Weldable Hinge
Tight pin
Swaged
Blank (no holes)
>>
>>
>>
>>
Sold by the Pair
ITEM#
SIZE
HI3H
HI4H
HI5H
HI6H
3"x3"
4"x4"
5"x5"
6"x6"
Standard Duty
Weldable
Hinge
.png){kind=small}
Tight pin
Swaged
Blank (no holes)
>>
>>
>>
>>
Sold by the Pair
ITEM#
SIZE
HI2S
HI3S
3"x3"
2"x2"
HI312S
HI4S
3-1/2"x3-1/2"
4"x4"
Barrel Hinges
Machined from high-strength steel
Ball bearing for smooth operation
Weldable
>>
>>
>>
ITEM#
GATE CAP
DESCRIPTION
BHG5
400 lbs.
5" Barrel Hinges
BHG7
700 lbs.
7" Barrel Hinges
Continuous
Hinges
Piano Hinges
Plain steel, stainless steel or aluminum
No holes
>>
>>
>>
>>
Sold Individually
ITEM#
SIZE
THICK
MATL.
HIC72
HIP27216
1-1/2"x72"
2"x72"
HIPAL27216
2"x72"
16 ga.
16 ga.
16 ga.
Steel
Steel
Alum.
HIPS27216
HIC372
HIP372H
HIP472H
HIC472
2"x72"
3"x72"
16 ga.
16 ga.
Stainless
Steel
3"x72"
4"x72"
4"x72"
16 ga.
11 ga.
11 ga.
Steel
Steel
Steel
Premium Heavy Duty Cantilever Gate Rollers
Includes heavy-duty ABS cover to protect rollers and bearings in all weather conditions
Includes strong magnets to help position the roller when mounting
New, improved heavy design
Extreme weather resistance
Includes heavy-duty covers
Quick mount magnetic base
>>
>>
>>
>>
>>
>>
Galvanized metal components for long-lasting performance. Machined 7" diameter nylon roller provides smooth operation. Also features 1-1/8" axles and heavy-duty bearings. Heavy-duty ABS covers can be mounted on to or bottom.
Axel Bearings
Nylon Cantilever Gate Rollers for Round Tube Gate Frame
>>
>>
>>
Fits 2-3/8" O.D. frame
6" diameter wheel
Includes U-bolts for round post
ITEM#
HA55R
HA59
GATE FRAME
2-3/8" OD
2-3/8" OD
POST SIZE
3" Round
4" Round
Industrial Ductile Iron Cantilever Gate Roller
Greasable Bearings
For 3" & 4" round O.D.
6" wheel and bracket
Includes U-bolts
>>
>>
>>
ITEM#
GATE FRAME
POST SIZE
HA32
HA33
2-3/8" OD
2-3/8" OD
3" Round O.D.
4" Round O.D.
Safety Roller Cover
For use with the nylon cantilever gate rollers
All metal construction
Gate roller not included.
>>
>>
>>
ITEM#
FOR POST SIZE
HA56C
4" Round
Square Nylon Gate Roller
>>
For 2" square gate frame and 4" square post
ITEM#
GATE FRAME
POST SIZE
HA51
2" Square
4" Square
Cast Iron Industrial Mini Cantilever Roller
For 1-5/8" O.D. gate frame
2-1/2" O.D. post
Includes U-bolts for round post
>>
>>
>>
ITEM#
GATE FRAME
POST SIZE
HA31
1-5/8" OD
2-1/2" Round
>>
>>
U-Bolt Sets
Used to mount rollers on square or round posts
Includes two square or two round U-bolts, washers and nuts
ITEM#
FOR POST SIZE
HA54SQ
4" Square
>>
>>
General Duty Steel Gate Roller
5" wheel
For 1-5/8" O.D. pipe
ITEM#
FOR POST SIZE
HA20
1-5/8" OD Pipe
Sealed Bearings
Round Nylon Gate Roller
>>
For 2-3/8" round gate frame and 4" round post
ITEM#
GATE FRAME
POST SIZE
HA52
2-3/8" Round
4" Round
Casters, Wheels and Tracks
Multi-Purpose Casters
>>
>>
>>
>>>>
Driveway Gates
Moving Dolly
Tool Carts
Equipment Racks
Portable Conveyors
Rigid
Swivel
HA212RR
HA3RR
HA4RR
HA6RR
2 1/2"
3"
4"
6"
175 lbs.
210 lbs.
300 lbs.
560 lbs.
Rubber
Rubber
Rubber
Rubber
Rigid
Rigid
Rigid
Rigid
ITEM#
WHEEL DIA.
LOAD CAP.
WHEEL MTL.
TOP PLATE
HA2SM
HA3SM
HA4SM
2"
3"
4"
125 lbs.
250 lbs.
350 lbs.
Metal
Metal
Metal
Swivel
Swivel
Swivel
HA212SR
2 1/2"
175 lbs.
Rubber
Swivel
HA3SR
3"
210 lbs.
Rubber
Swivel
HA4SR
4"
300 lbs.
Rubber
Swivel
HA6SR
6"
560 lbs.
Rubber
Swivel
HA2RM
2"
125 lbs.
Metal
Rigid
HA3RM
HA4RM
3"
4"
250 lbs.
350 lbs.
Metal
Metal
Rigid
Rigid
Steel "V" Groove
Wheels
>>
>>
>>
>>>>>>>>>>>>>>
All steel construction
4" dia. x 1-3/4" wide
6" dia. x 1-3/4" wide
Sealed bearings (no grease fittings)
4" wheels have 3000lbs. capacity
6" wheels have 5000lbs. capacity
4" model includes 1/2" bolt and nut
6" model includes 5/8" bolt and nut
Gold/zinc plating
Maintenance free
Recommended for use with V-Groove Track HA21TR4
ITEM#
DESCRIPTION
HA40
HA41
4" V-Groove Wheel
6" V-Groove Wheel
Fully-Pneumatic Wheel Casters
Wheel size: 8"x2-1/2"
Plate size: 4-1/2"x4"x1/4"
>>
>>
ITEM#
STYLE
HA27
HA29
Swivel
Rigid
1/2" Hole
Will fit most 4" wheels
Heavy 3/16" steel
"V" Groove Wheel Plate
>>
>>
>>
ITEM#
DESCRIPTION
HA39
V-Groove Wheel Plate
PREMIUM V-GROOVE TRACK & WHEELS
.png){kind=small}
Cast Iron
"V" Groove Wheels
Cast Iron Body
>>
>>
>>
>>
Grease fitting for easy lubrication
Roller bearings for easy operation
Rolls smoothly on ordinary angle iron
Complete with 1/2" mounting bolt & nut
Recommended for use with V-Groove Track HA21TR4
DESCRIPTION
ITEM#
HA21
4" Cast Iron V-Groove Wheel
HA22
6" Cast Iron V-Groove Wheel
Premium 5-1/2" Steel V-Groove Wheels
>>
>>
>>
>>
Double sealed bearings
1-3/4" width
5/8" bolt and nut included
Plated finish
Recommended for use with Steel V-Groove Track HAC293
ITEM#
DESCRIPTION
HAC305V140
5-1/2" V-Groove Wheel
Light Duty 2" Steel V-Groove Wheels
>>
>>
3/8" bolt and nut included
Plated finish
Recommended for use with Steel V-Groove Track HAC293
ITEM#
DESCRIPTION
HAC300D50
2" V-Groove Wheel
Galvanized Steel V-Groove Track
>>
>>
>>
2" width low profile, 236" long
Hole spacing is 18" on center
Galvanized finish
If shipping we offer a FREE service to cut track into smaller sections that are more manageable.
ITEM#
HAC293
DESCRIPTION
Steel V-Groove Track
4" Steel V-Groove Wheels
>>
>>
>>
>>
>>
With mounting plates
Doubles sealed bearing construction
Weldable plates allow for easy inseration into 2" wide tube frame
1" wide wheel
2" total frame width
Recommended for use with Steel V-Groove Track HAC293
ITEM#
DESCRIPTION
HAC333D100
4" V-Groove Wheel
HAC326V100
4" Steel V-Groove Wheels
>>
>>
>>
>>
With mounting plates
Heavy duty double sealed bearings
Mounts on 1" or wider tube frame
Plated finish
Recommended for use with Steel V-Groove Track HAC293
ITEM#
DESCRIPTION
4" V-Groove Wheel
Premium 4" Steel V-Groove Wheels
Double sealed bearings
1-3/8" width
9/16" bolt and nut included
Plated finish
Recommended for use with Steel V-Groove Track HAC293
>>
>>
>>
>>
ITEM#
DESCRIPTION
HAC305V100
4" V-Groove Wheel
GATE & SLIDING DOOR HARDWARE
Box For Premium 4" Steel V-Groove Wheels (HAC305V100)
Weldable
4-3/8" x 3" x 1-1/2" heavy gauge steel
>>
>>
ITEM#
DESCRIPTION
HAC100
Box For HAC305V100
>>
>>
Premium Roller Guides
Protective Cover Available Item #HA38
UV Protected Hard Plastic
Rollers are removable and replaceable
ITEM#
COLOR
LENGTH
HA35XBLK
HA35XWHT
Black
White
6"
6"
Roller Guides
Adjustable for gate frames up to 3-3/4" wide
Bracket Dimensions: 1-3/4" x 7-1/8" x 3-1/2"
Bracket Thickness: 1-4"
Roller Dimensions: 1-3/16" dia x 1-1/2"
Bolt Holes: 3/8" x 9/16" oblong
>>
>>
>>
>>
6" Premium Roller Protective Cover
.png){kind=small}
Roller Not Included-Cover fits HA35XBLK
ITEM#
HA38
COLOR
DESCRIPTION
Black
Protective Cover Only
ITEM#
HAC2120
Roller Guides
>>
Rollers are permanently mounted in bracket.
ITEM#
ROLLER LENGTH
HA34
HA35
HA36
3"
6"
12"
Heavy Duty Spring Gate Casters
6" wheel
Compression spring helps support gate/door.
The 4" x 11" heavy duty mounting bracket is constructed from 5/16" steel with 7/16" mounting holes
>>
>>
>>
ITEM#
TRAVEL
HA16HD
1"
Brass Roller
>>
>>
3" High
1-1/4" Dia.
ITEM#
HAC227
Multi-Purpose Solid Rubber Tire
8" diameter
1-3/4" wide
5/8" Bore
>>
>>
>>
Axel not included
ITEM#
HA37RT
>>
>>
Nylon Roller Guide
Small
1"dia. 2-3/4"L
Medium
1-1/2" di 3"L
ITEM#
HAC243D25
HAC243D40
SIZE
SMALL
MEDIUM
Double Wheel Gate Carrier
6" Solid rubber tires
ITEM#
WHEEL SIZE
HA19
6"
Weldable Gate and Door Stop
4-1/2" Tall
3-1/2" Wide
>>
>>
ITEM#
HAC200G
>>
Gate-Stop Gate Alignment Device
Black
Molded from high-strength polymer materials, its is guaranteed against rust, distortion and staining. An integrated rubber buffer protects against 'gate slam' and reduces noise
ITEM#
APPLICATION
Wood/Vinyl Gates
HITCGS1
HITCGS2
Vinyl Gates
HITCGS3
Metal Gates
Gate Spring Roller
Height: 16-3/4"
Heavy Duty Spring
Mill Finish
3" Swivel Caster
>>
>>
>>
>>
ITEM#
HA16
CANE BOLTS
Self-Locking Drop Bolt
4" adjustable height
Aluminum pin
Aluminum head block
Throw: 5-1/2"
Double gate
Locks between the leaves to prevent opening
>>
>>
>>
>>
>>
>>
NO KEY OR PADLOCK REQUIRED!
ITEM#
LENGTH
LKVSAQFBL
7-3/4"
LokkBolt Lockable Cane Bolt
Ideal for double-drive gates
Key-lockable and rekeyable
>>
>>
An optional Base Plate offers added strength to the securing ground hole.
ITEM#
LENGTH
HALB124BXKS
HALBBPBG
24"
Base Plate
>>
>>
Q-Bolt Cane Bolt
Made from high grade stainless steel, polished then powder-coated
Padlockable
ITEM#
LENGTH
HAQB124
HAQB140
24"
40"
Auto-matic Cane Bolt Lock Pin
>>
>>
Automatically locks gate when it closes
For slide or swing gates
Made of coated steel and brass.
ITEM#
LENGTH
HAC7100
13-1/4"
>>
>>
>>
Cane Bolt
.png)
20" length (measurements does not include extension)
3/4" diameter bolt
Heavy-duty welded construction
Extra Heavy-Duty
ITEM#
LENGTH
HAGH12320
20"
>>
>>
Economy Cane Bolts
Plated round bar
For wood or metal fences
ITEM#
LENGTH
SIZE
HA12
1/2"
HA18
1/2"
HA24CB
5/8"
12"
18"
24"
Mechanical Locking Cane Bolt
1/2" diameter; Length 22"
Mill Finish
Can be used with standard padlock
>>
>>
>>
ITEM#
LENGTH
HA19CB
22"
bottom of page
